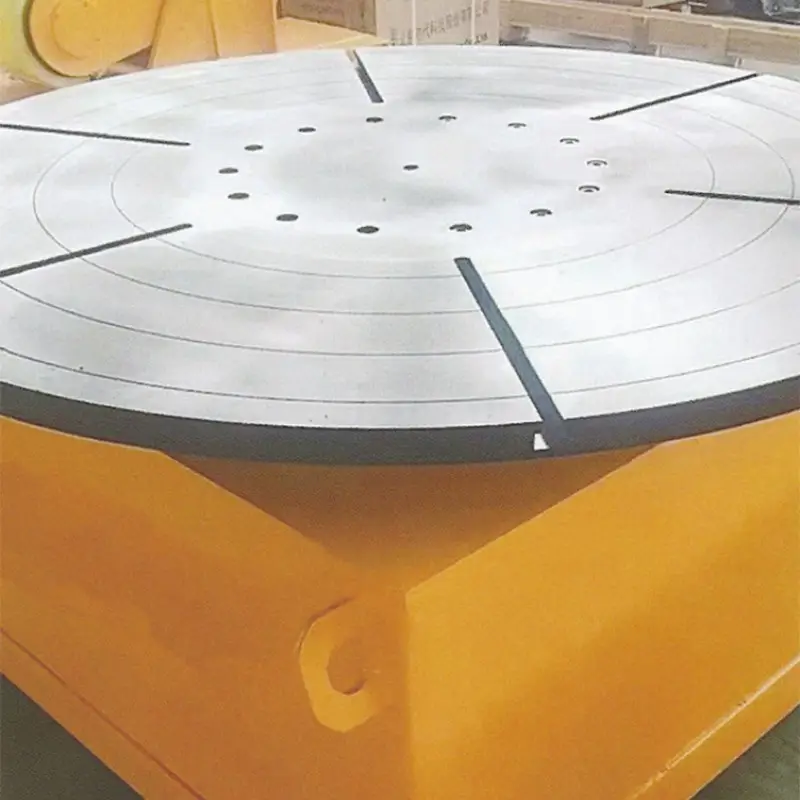

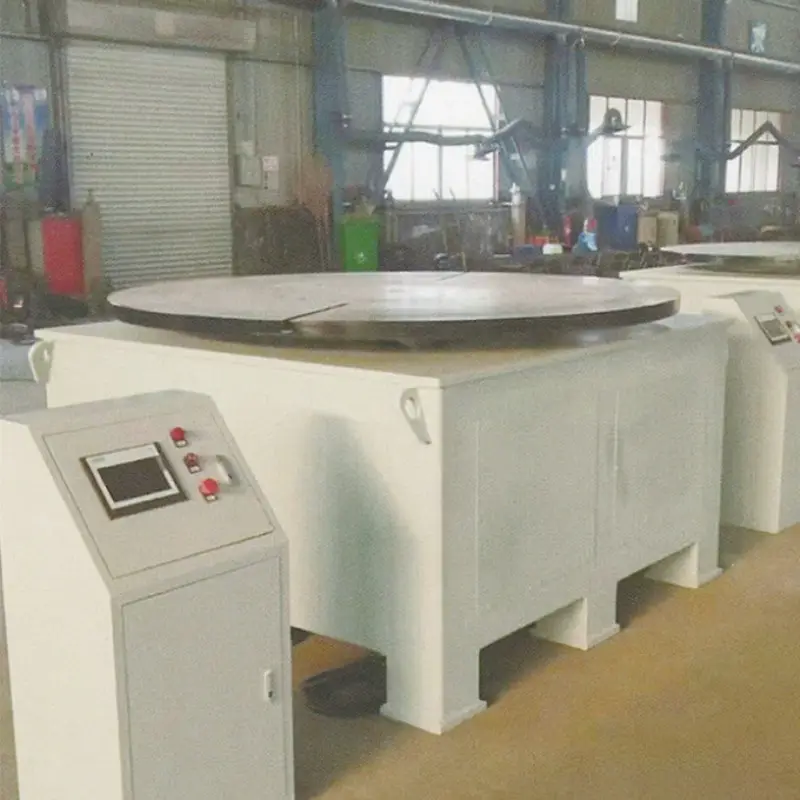

The welding rotary platform consists of six parts: a rotating working platform, a transmission mechanism, a machine body, a smoke exhaust device, a water cooling system, and a conductive device. It is mainly used for welding and assembly of parts that need to be welded. By rotating the platform, the weld seam is in the optimal position, and the speed is selected according to the welding process requirements to achieve automatic welding, improve the quality and production efficiency of the weld seam, and achieve the best welding effect. The automatic welding rotary platform can form a workstation with the control center, achieving linkage or independent control. In the linked working state, the rotation of the turntable can be directly controlled through the control center and displayed digitally; When controlled separately, parameters can be preset through the rotary table manual control box, and the display is intuitive.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| ZHB-01 Welding Positioner | ZHB-06 Welding turntable | ZHB-12 Welding turntable | |
| Rated Loading Capacity (kg) | 100 | 600 | 1200 |
| Rotation Velocity (rpm) | 0.1-1 | 0.09-0.9 | 0.05-0.5 |
| Speed of Tilting Table (rpm) | Manual | 1.1 | 0.67 |
| Electric Panel | Yes | Yes | Yes |
| Tilt Angle (°) | 0-120 | 0-90 | 0-90 |
| Size of Working Table (mm) | Φ400 | Φ1000 | Φ1200 |
| Rotation Motor (kw) | 0.18 | 0.75 | 1.1 |
| Tilt Motor (kw) | / | 0.75 | 1.1 |
| Speed Mode | Frequency Conversion Stepless Speed | Frequency Conversion Stepless Speed | Frequency Conversion Stepless Speed |
| Max Distance of Gravity Center(mm) | 100 | 100 | 150 |
| Max Distance of Distance(mm | 150 | 100 | 100 |
| Max Turning Diameter(mm) | Φ600 | Φ1500 | Φ2050 |
| Options | Color, Chuck | Color, Chuck | Color, Chuck |
| Voltage Supply | 110-575V, Single/3 Ph, 50/60Hz | 110-575V, Single/3 Ph, 50/60Hz | 110-575V, Single/3 Ph, 50/60Hz |
| Control Box Ingress Protection Rating: IP65Product specifications and availability may vary by country | |||
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
