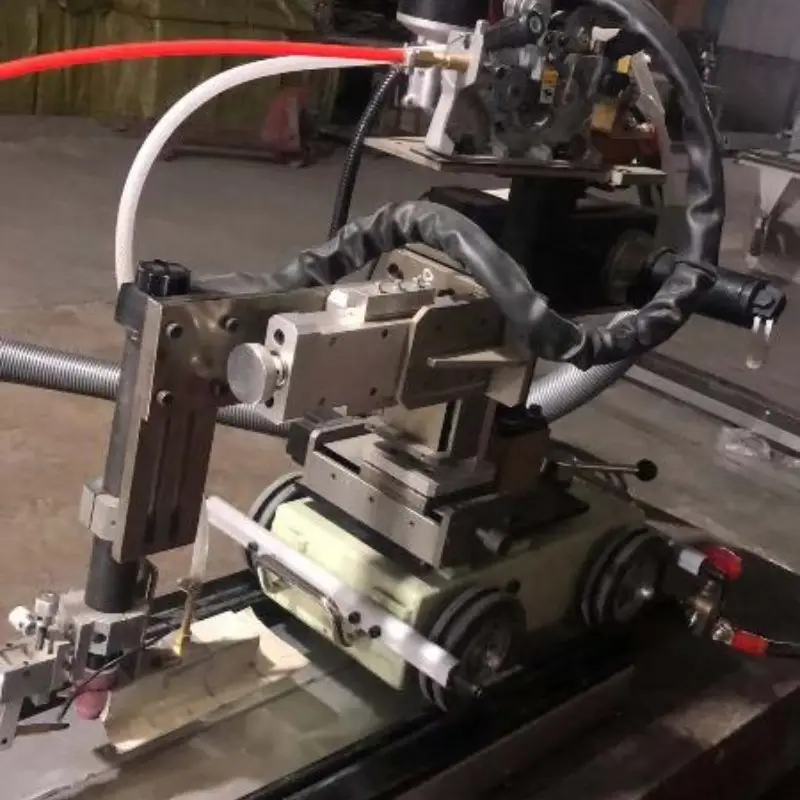

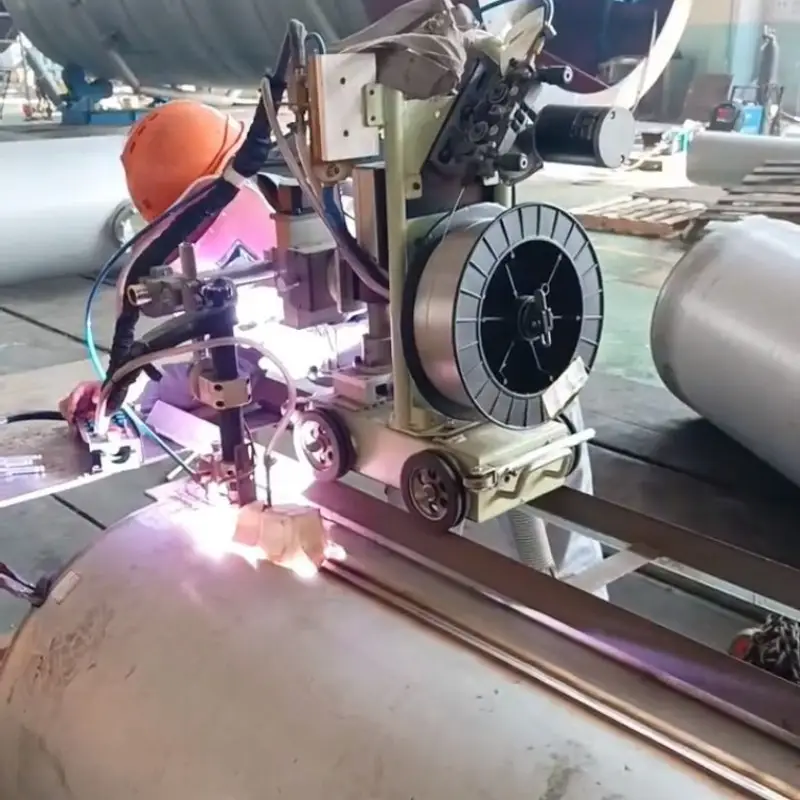

TIG welding trolleys are automated and efficient argon arc welding tools. They are ideal welding equipment for improving the efficiency of longitudinal seam welding of stainless steel and aluminum alloy pipes, tubes, vessels, and storage tanks, and are widely used in industries such as container manufacturing, pharmaceutical machinery, and food machinery.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| WKD-400 | |
| Wire diameter (mm) | Φ1.0-1.6mm |
| Welding speed (mm/min) | 0.1-1.0m/min |
| Traveling speed (mm/min) | 0-780m/min |
| Horizontal adjustment range (mm) | Electric fine adjustment 80mm |
| Longitudinal adjustment range (mm) | Manual fine adjustment 80mm |
| Driving method | Servo driven four rubber wheels |
| Clamping adjustment range (mm) | X/Y 20 each |
| Filler wire angle | 0-60° |
| Wire spool capacity (kg) | 20kg |
| Track gauge (mm) | 224mm |
| Dimensions (mm) | 690*620*530 |
| Weight (kg) | 15.8kg |
| Wire diameter (mm) | WKD-400 |
| Welding speed (mm/min) | Φ1.0-1.6mm |
Welding multi-function power supply：WKD-400 is a three-phase multifunctional inverter DC welding power supply. It has high duty cycle (400A 60%), high efficiency and energy saving, and adaptability to multiple network voltage input. This inverter power supply is equipped with a digital voltage and current meter, and the housing protection level is IP23S. The built-in cooling fan can automatically start and stop according to the temperature inside the welder. The welder can store multiple welding parameters.

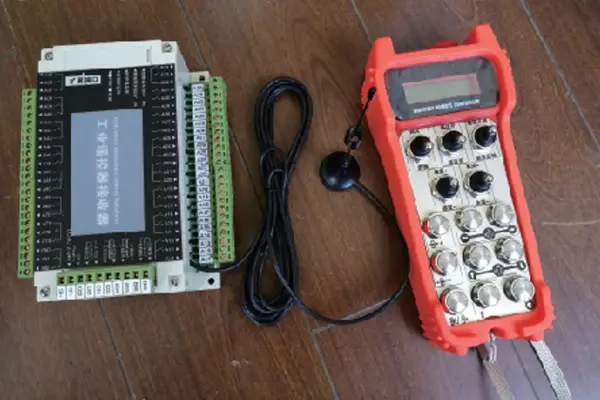

Argon arc welding wired remote control：This product is a standard remote control for automatic TIG welding equipment.

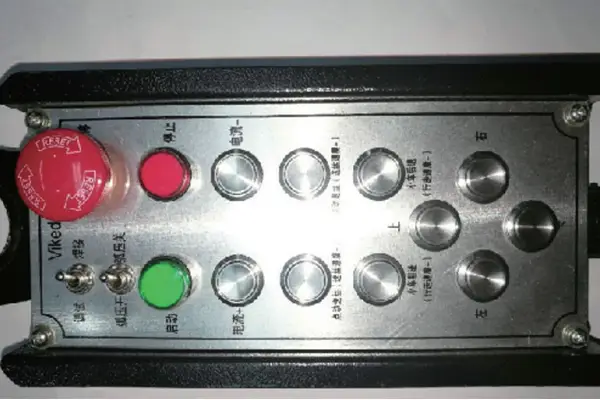

Argon arc welding wireless remote contro（Optional）：The product is equipped with a remote control receiver and a signal transmitter, which is convenient for operators to use and carry, and has excellent sending and receiving performance.
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
