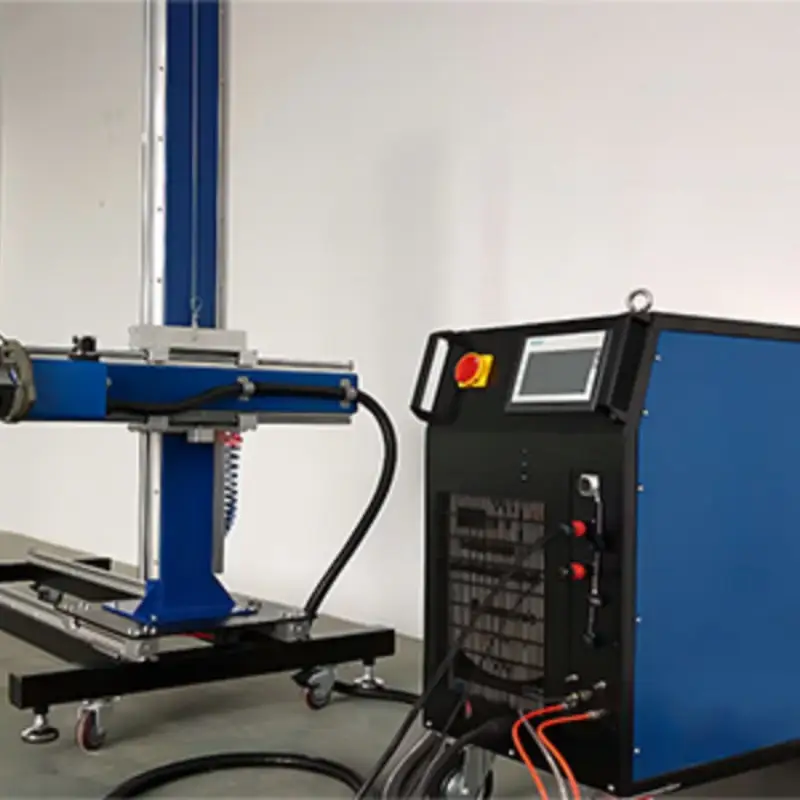

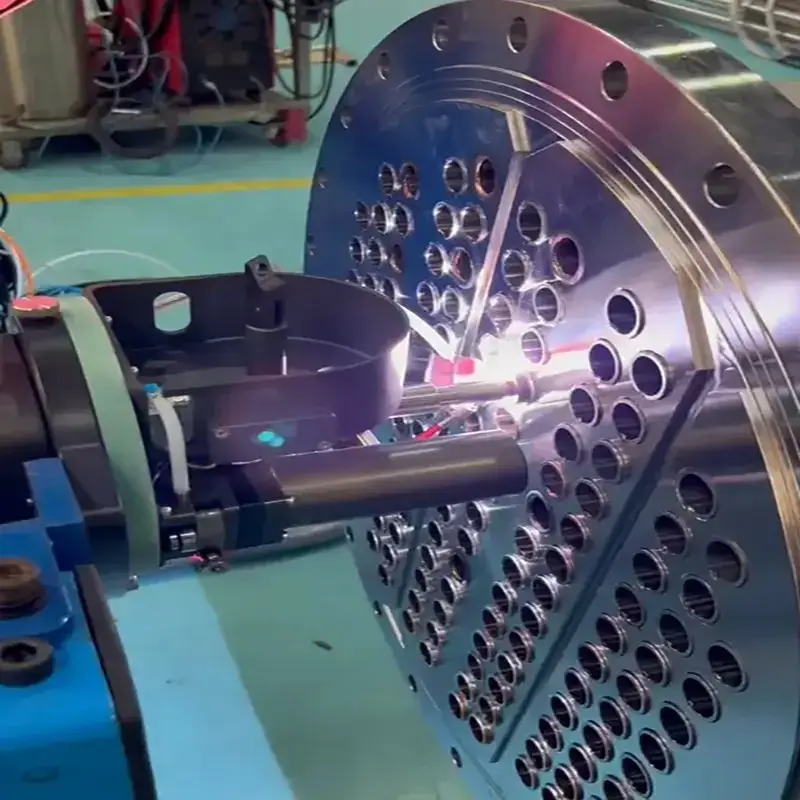

The welding equipment designed for automatic TIG welding of pipe and tube sheet is suitable for automatic welding of tube sheet of high & low pressure vessels, boilers, heat exchangers, etc. It can weld titanium alloy, stainless steel, carbon steel and other materials. Welding methods are flat-head of pipe welding, pipe extension fillet welding, wire welding and self-melted welding without filling wire are available, with fast welding, good welding seam, high quality characteristics, MK400 welding power source is standard configuration, the welding range of pipe diameter is 16-76mm, the flat-head of pipe welding and the pipe extension fillet welding can be completed perfectly. Mainly used in boiler, pressure vessel, heat exchanger, food, pharmacy, power plant and other industries.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Pipe plate welding form | Pipe extension/Pipe flat-head | Wire diameter(mm) | Φ0.8~1.0mm | |
| Weldable pipe diameter(mm) | φ16~76mm | Welding protection gas | Argon | |
| Welding head rotation speed(rpm) | 0.3~6rpm | Welding material | Carbon steel,stainless steel,titanium alloy,etc. | |
| Arc length adjustment distance(mm) | 20mm | Cooling method | Circulating water cooling | |
| Welding torch tilt angle | 0°~35° | Rated current(A) | 60%315A | |
| Max welding current (A) | 400A | External dimensions | 545*292*509mm | |
| Max wire feeding speed(mm/min) | 1680mm/min | Weight (kg) | 13kg |
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
