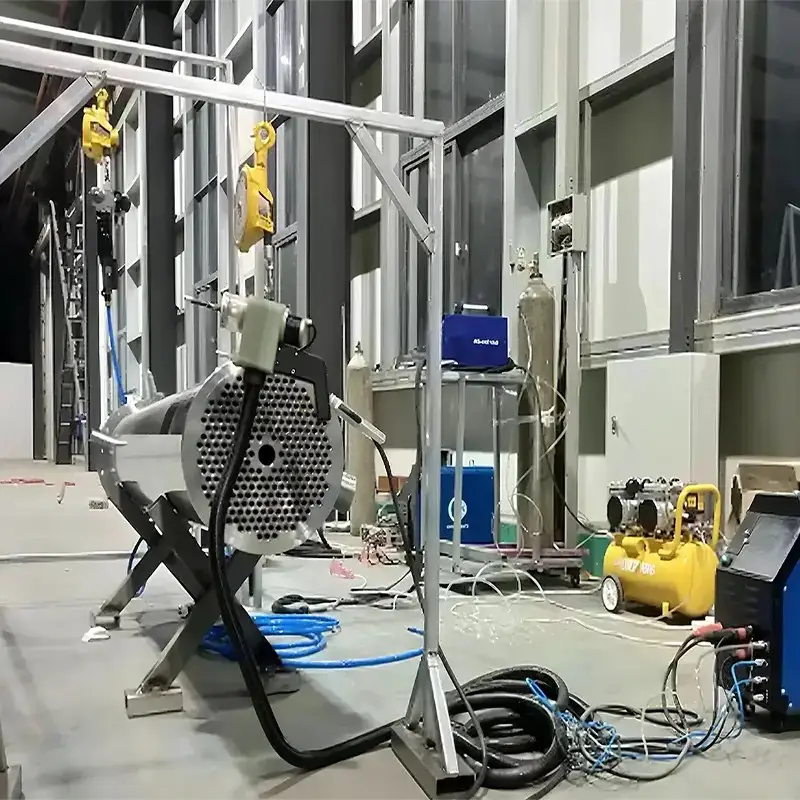

This welding torch is specifically designed for fully automated TIG autofusion welding of tubes/tube sheets. It is suitable for automated tube sheet welding of low-pressure vessels and can weld materials such as titanium alloys, stainless steel, and carbon steel. The welding method involves flat-end welding of the tube, autofusion welding without filler wire, and features fast welding speed, aesthetically pleasing welds, and high weld quality. It can be used withMK400 welding power supplies and is widely used in industries such as food, medical, and power plants, offering even higher welding quality for materials prone to oxidation.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Weldable pipe diameter (mm) | φ14~32mm |
| Tube-to-sheet welding method | Flat-ended tube |
| Welding head rotation speed (rpm) | 0.496~9.93rpm |
| Tungsten electrode tilt angle | 0,5,7,15 |
| Welding shielding gas | Argon gas |
| Cooling method | Water cooling |
| Rated current (A) | 60%200A100%160A |
| Dimensions (L x W x H mm) | 315*190*62mm |
| Weight (kg) | 2.1kg |
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
