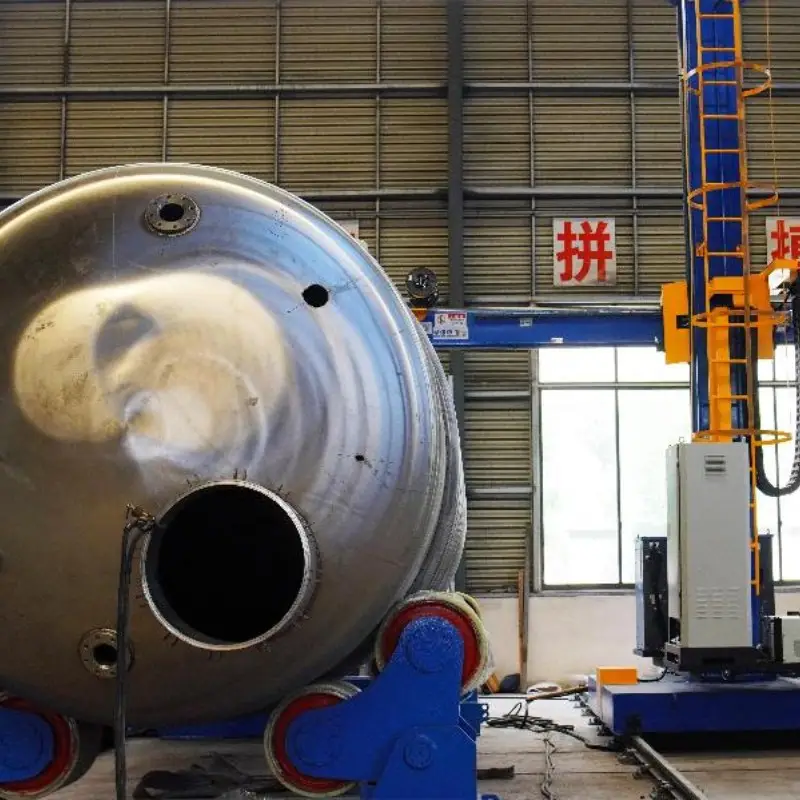

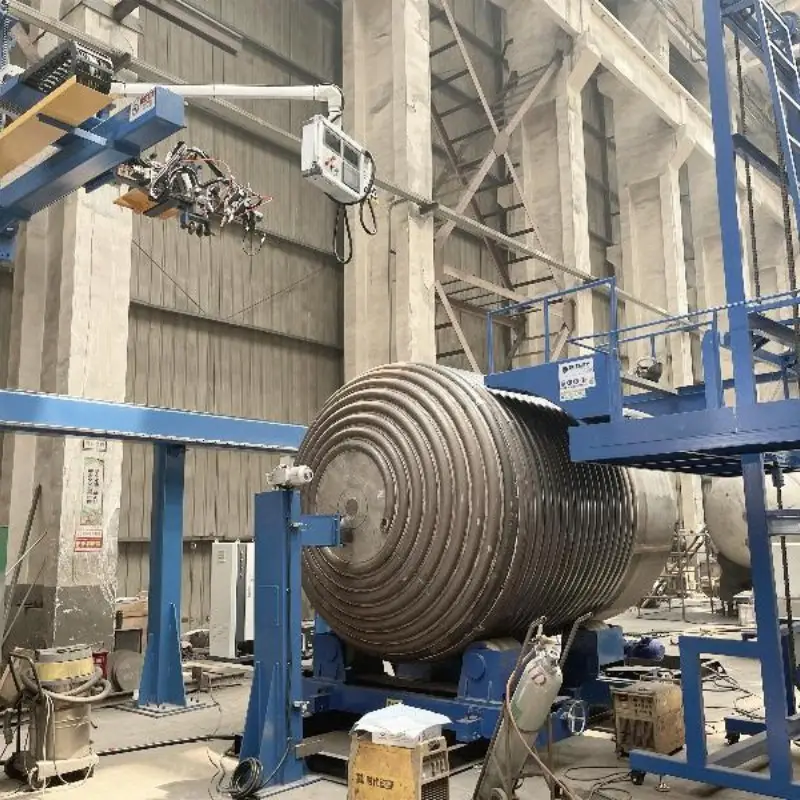

Weld-technology：Half coil pipe filet welding outside cylinder, it can be equipped with TIG or MIG/MAG welding and other welding technologies.
Applicable Products：Pressure vessel, Reactor, heat exchanger, etc.
Welding wire：The wire material should match up the material of the workpiece. TIG wire can use 1.0 or 1.2mm spool wire and unit spool weight is 15kg. The welding wire should be properly kept and protected to avoid moisture and bending, otherwise the quality of welding seam and the stability of wire feeding would be effected.
Protective gas：TIG torch uses argon & hydrogen mixed gas (95% Ar & 5% H2), MIG torch uses argon & dioxide mixed gas (98% Ar & 2% CO2) with solid-core wire, or CO2 shield gas with flux-core wire.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Workpiece parameter | |
| Workpiece diameter(mm) | φ800~3000 |
| Workpiece length(mm) | Single section less than 2500mm |
| Material | Carbon steel,stainless steel |
| Thickness | 3mm or more |
| Welding form | Cylinde half pipe fillet welding |
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
