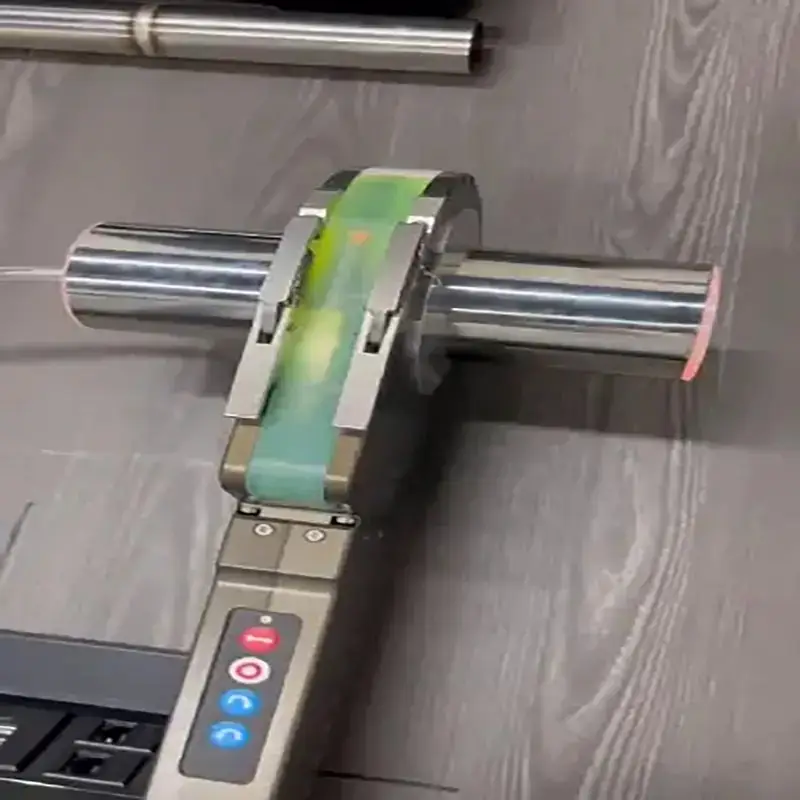

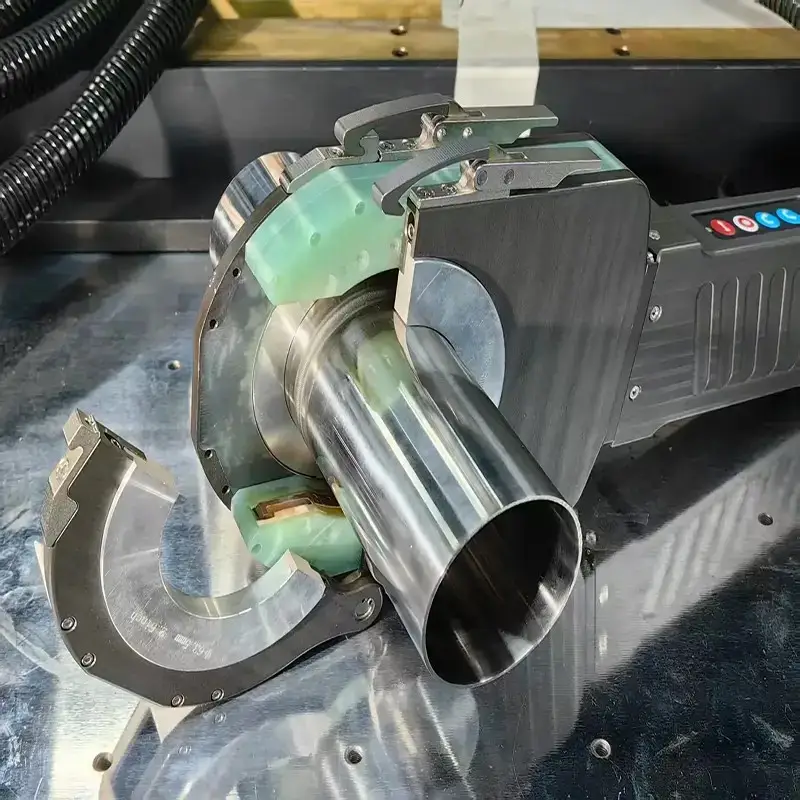

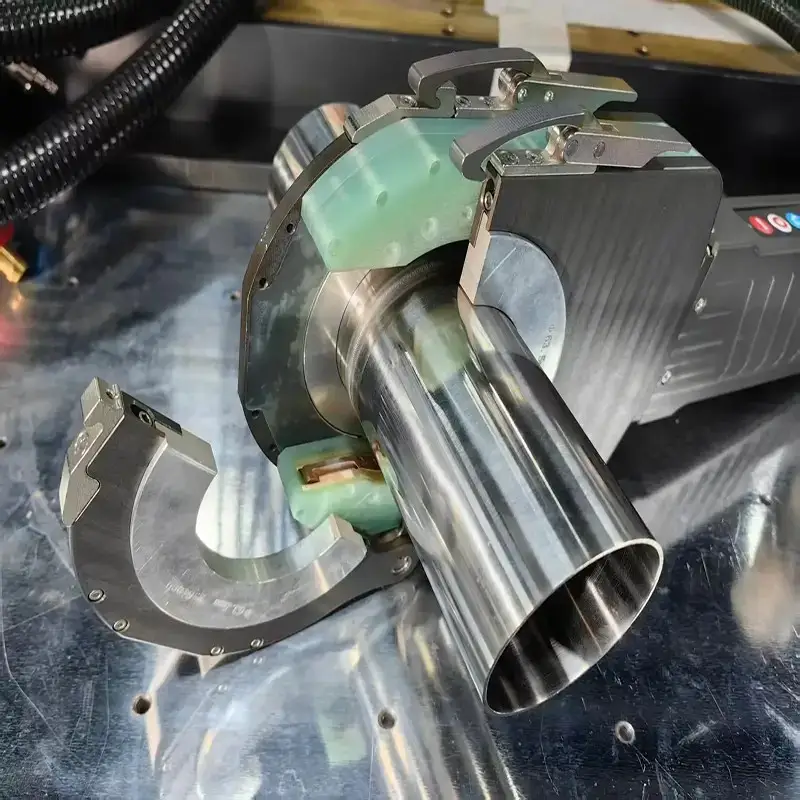

This equipment features a closed structure and is specifically designed for pipe-to-pipe TIG welding.it adopts the self-melting welding method, which is suitable for thickness 1.5-3mm pipe-pipe automatic welding. Applied for welding of carbon steel, stainless steel and other pipe-pipe joint. Optional for integrated wire feeder or external wire feeder with arc length swing function. It can be used with MK200 program-controlled welding power source to achieve all-position TIG pipe-pipe welding, with high repeatability of welding results and ideal welding effects. Mainly used in chemical, food, engineering installation, boiler, military and nuclear power and other industries.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Model | TC38 | Torch rotation speed | 0.2657~5.3145rpm |
| Weldable pipe diameter(mm) | 6~38.1mm | Protective gas | Argon |
| Maxwall thickness of weldable | 3mm | Cooling method | Water cooling |
| Main welding material | Carbon steel,stainless steel,Tialloy | Cooling flow | ≥450m/min |
| Main power supply | MK200 | External dimensions | 355*115*37.8mm |
| Maxwelding current(A) | 85A 40%/65A 60%/45A 100% | Weight (kg) | 3.5kg |
| Model | TC78 | Torch rotation speed | 0.194~3.877rpm |
| Weldable pipe diameter (mm) | 19.05~76.2mm | Protective gas | Argon |
| Max wall hickness of weldable | 3mm | Cooling method | Water cooling |
| Main welding material | Carbon steel,stainless steel,Tialloy | Cooling flow | ≥450mVmin |
| Main power supply | MK200 | External dimensions | 425*170*38mm |
| Max welding current (A) | 100A 40%/75A 60%/55A 100% | Weight(kg) | 5kg |
| Model | TC118 | Torch rotation speed | 0.092-1.924rpm |
| Weldable pipe diameter(mm) | 38.1~114.3mm | Protective gas | Argon |
| Max wall thickness of weldable | 3mm | Cooling method | Water cooling |
| Main welding material | Carbon steel,stainless steel,Tialloy | Cooling flow | ≥450mVmin |
| Main power supply | MK200 | External dimensions | 482*210*50mm |
| Max welding current(A) | 120A 40%/100A 60%/80A 100% | Weight (kg) | 6.5kg |
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
