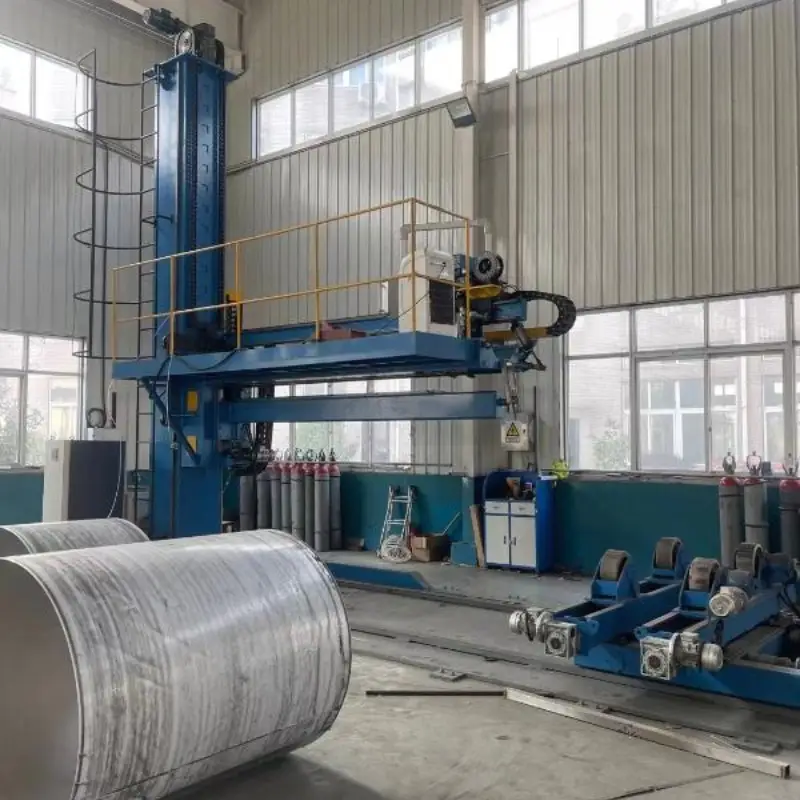

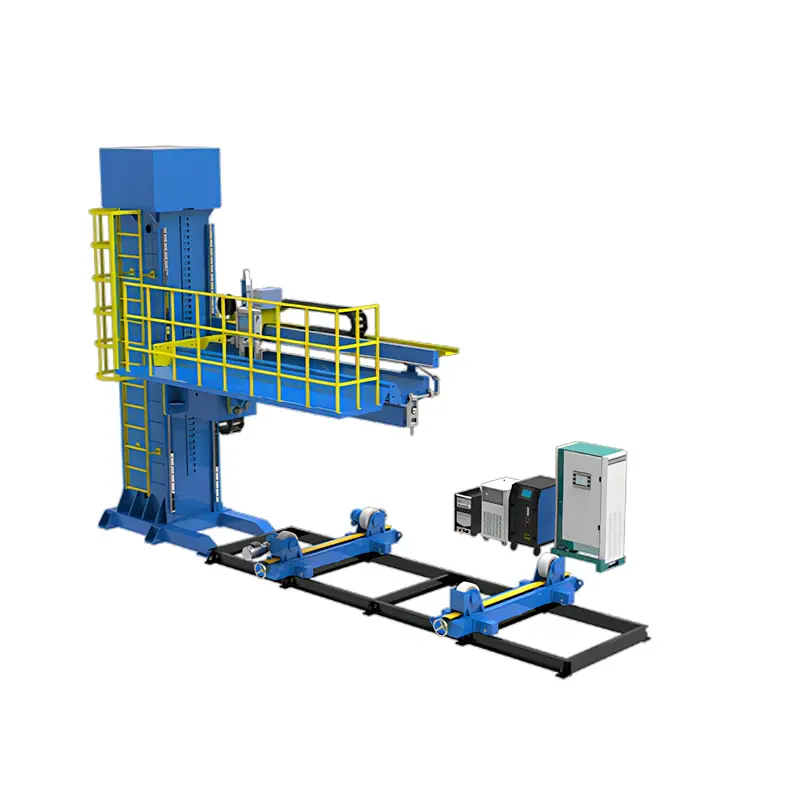

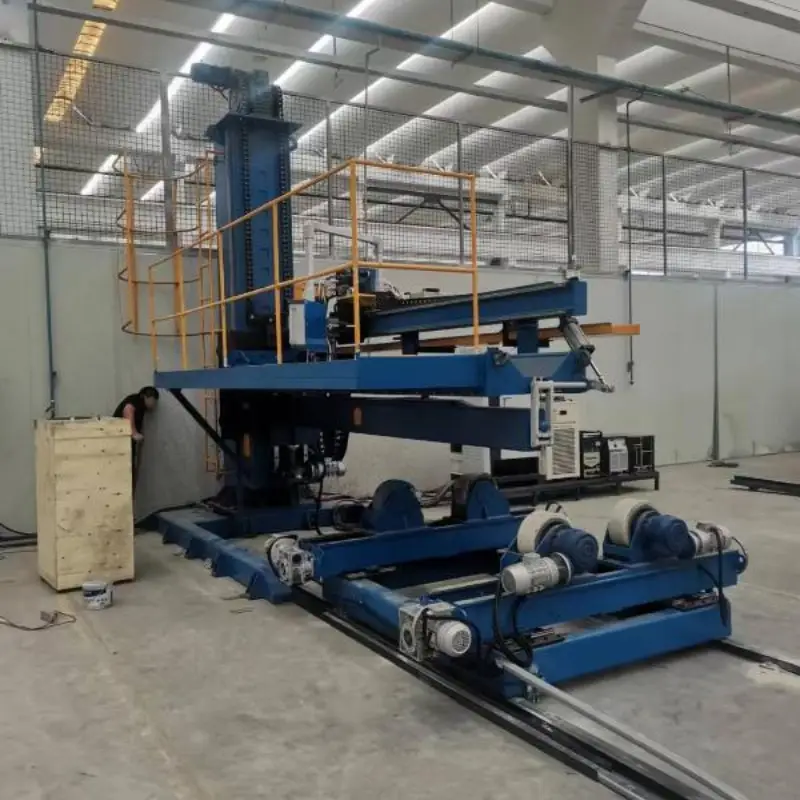

The longitudinal seam welding machines series offer multiple configurations. They are designed primarily for internal and external longitudinal seam welding of thin-wall cylinders, compatible with SAW, TIG, MIG/MAG, PAW and other welding methods. These tools weld carbon steel, stainless steel, aluminum alloys, titanium alloys, and more. Typical applications include food machinery, dyeing and finishing equipment, power switches, cylinders, medical machinery, special chemical containers, power pipelines, and air conditioner housings. Depending on the workpiece, an additional protection device can be installed, and the tool height can be increased. The welding process is reliable and efficient, controlled entirely by program.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Model | ZFS2000 | ZFS3000 | ZFS4000 | ZFS5000 |
| Max length of cylinder(mm) | 2000 | 3000 | 3000 | 3000 |
| Max clamping length(mm) | 1600 | 3100 | 4160 | 5220 |
| Max camping diameter(mm) | Φ3000 | φ3000 | φ4000 | φ5000 |
| Min cdamping diameter (mm) | Φ280 | φ450 | φ450 | 中450 |
| Min clamping thickness (mm) | 1.0 | 1.0 | 1.5 | 2.0 |
| Max camping thickness(mm) | 12 | 10 | 10 | 10 |
| Key interval adjustable range(mm) | 5-40 | 5-40 | 10-40 | 10-50 |
| Max pressing force (aside kgf/cm) | 30 | 30 | 30 | 30 |
| Vertical stroke of spindle(mm) | 30 | 30 | 50 | 50 |
| Shaft end bracket adjustment(mm) | 20 | 20 | 30 | 50 |
| Welding trolley speed(mm/min) | 50-5000 | |||
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
