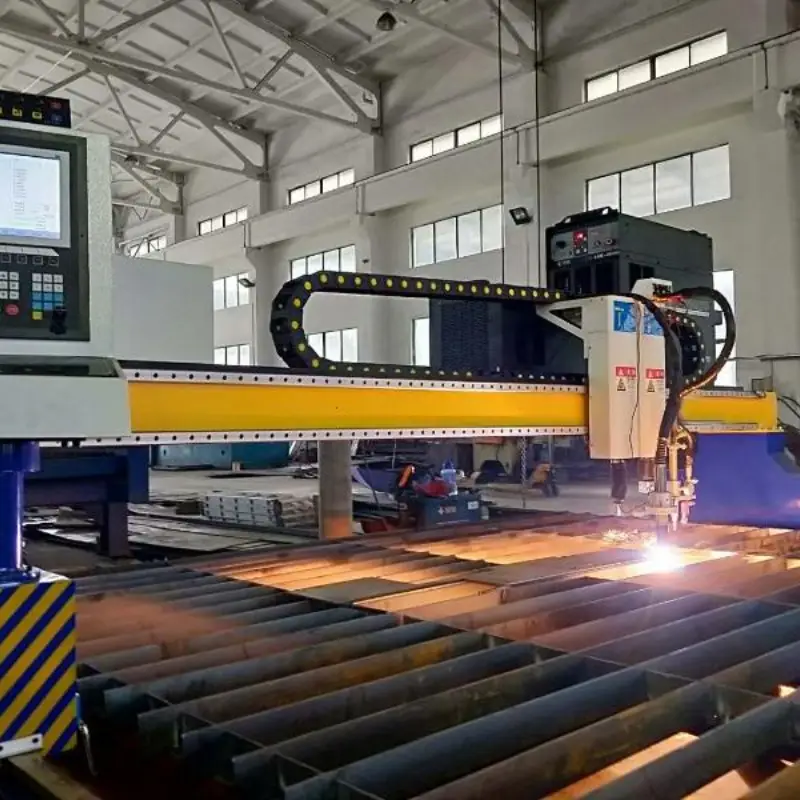

This CNC flame cutting machine is an excellent model developed by combining the advantages of domestic and international CNC cutting machines. The crossbeam adopts a wide-body reinforced box structure with an aesthetically pleasing appearance. The end beams feature a low center of gravity design, symmetrical structure, and good stability. All structural welds undergo stress-relief treatment to ensure overall accuracy and good dynamic balance. The trolley travel rails are made of high-strength heavy rails weighing 24kg-50kg, with the top and sides precision-machined by milling. Each rail is 2 meters long and can be extended indefinitely. It uses an imported planetary reducer with high-precision gear and rack drive to ensure machine stability. Major electrical components and upper parts are sourced from top international brands.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Model | BXLM Universal | BDLM Heavy duty | BCLM Super heavy | BJLM Precision type | ||||
| Track gauge mm | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| Standard length (mm) | 8000 | 12000 | 14000 | 14000 | 16000 | 16000 | 18000 | 18000 |
| Effective cutting width (mm) | 2200 | 3200 | 4200 | 5200 | 5200 | 7200 | 8200 | 9200 |
| Effective cutting length (mm) | 6000 | 10000 | 12000 | 12000 | 12000 | 14000 | 16000 | 16000 |
| Flame Torch | Standard configuration includes 2 flames | |||||||
| Cutting thickness | Standard flame 6-150mm | |||||||
| Large vehicle drive | Except for the 3000mm version, all models come standard with dual-drive configurations. | |||||||
| Control system | Optional configuration: Shanghai Jiao Tong University/Hibao (USA) | |||||||
| Nesting software | Optional configurations: Australian FASTCAM Standard Edition, FASTCAM Expert Edition | |||||||
| Cutting speed | 0-6000mm/min | |||||||
| Idle speed | 0-12000mm/min | |||||||
| Input power | AC220V/380V±10% | |||||||
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
