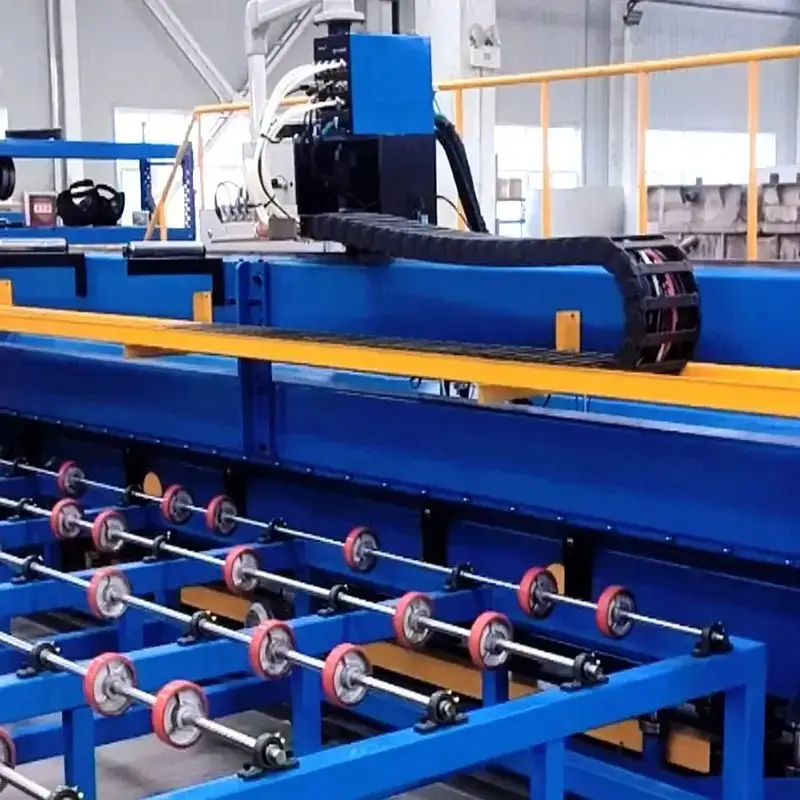

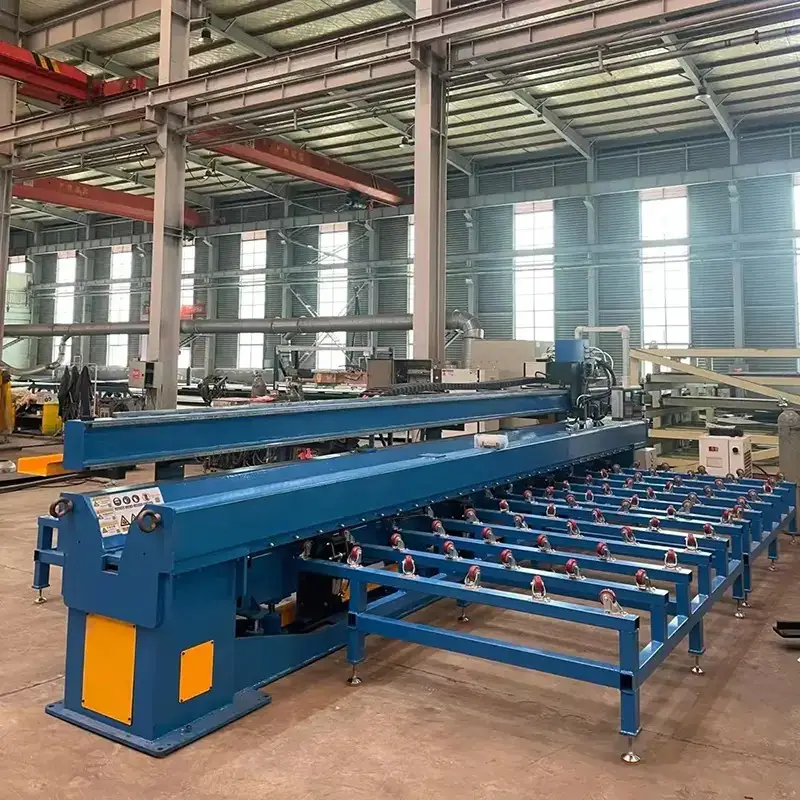

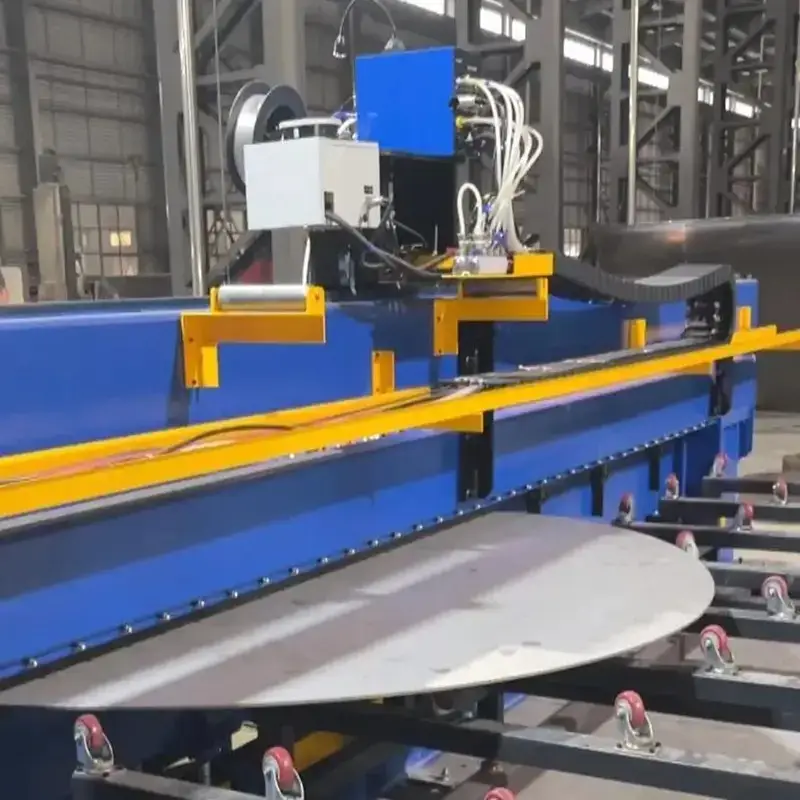

Plate Butt Seam automatic Welding Machine are mainly used in carbon steel, stainless steel, titanium alloy, aluminum alloy plate butt welding, suitable for plate thickness 1.5-10mm, in the case of plate edge could be beveled or milling, the effective clamping thickness could reach up to 12mm. It can be equipped with TIG, MIG/MAG, PAW, SAW and other welding technologies and single-side welding and double-side forming can be finished. The equipment used reasonable gantry structure, the welding technology is reliable and efficient, the welding process is reliable and efficient, the whole welding process is controlled by program.
Breaking away from the single sales model, we offer diversified solutions combining "equipment sales + flexible leasing".
We provide professional non-standard equipment customization services to address customers' specific workpiece materials and complex process pain points.
If you have unique requirements, we offer special design options tailored to your specific requests.
| Model | PB3000 | PB4000 | PB6000 | PB8000 | PB10000 |
| Max welding length (mm) | 3000 | 4000 | 6000 | 8000 | 10000 |
| Weldable plate thickness (mm) | 1.5-12 | 1.5-12 | 2.0-12 | 2.0-12 | 2.0-12 |
| Max pressing force (aside kgf/cm) | 30 | 30 | 30 | 30 | 30 |
| Key interval adjustable range(mm) | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 |
| Welding trolley speed (mm/min) | 65-1250 | 65-1250 | 65-1250 | 65-1250 | 65-1250 |
| Gasket stroke/method (mm/min) | Manual 0-60 | Manual 0-60 | Electric 0-60 | Electric 0-60 | Electric 0-60 |
| Dimensions (mm) | 4650*1100*1550 | 5800*1100*1600 | 7900*1200*2000 | 10500*1200*1600 | 12000*1250*1600 |
| Weight (t) | 3.82 | 5.2 | 8.0 | 11.0 | 13.0 |
Our company specializes in the research, development, manufacturing, installation, and sales of various automated plasma welding equipment, deep penetration welding equipment, robotic welding stations, wear-resistant surfacing equipment, welding auxiliary equipment, robotic cutting workstations, grinding and polishing machines, automatic coiling pipe machines, and non-standard automated production lines. We also handle and act as an agent for various import and export businesses.
Our company provides comprehensive after-sales services, covering equipment commissioning, parameter optimization, operator training, and long-term maintenance. In case of emergency malfunctions, we promise to provide remote guidance within 24 hours. We also conduct regular follow-up visits, spare parts supply, and technical consultation services to ensure your production runs smoothly.
Yes. We welcome customers to visit our factory and observe equipment demonstrations. If needed, we can arrange trial welding using actual workpieces provided by you to verify the equipment's process effectiveness and weld quality.
Automated welding equipment can operate continuously for 24 hours. For the same weld specifications, the time required is reduced by 2-3 hours compared to manual welding, increasing efficiency by over 60%. For example, a job that would take 3 skilled welders 3 days to complete can be finished with high quality in 1 day by a single welding robot, while also reducing wire and gas consumption by 20%-40%. Overall, automated welding can reduce labor costs by approximately 60%.
Send us your quote request and we will generate a quote for you with all the information you need.
